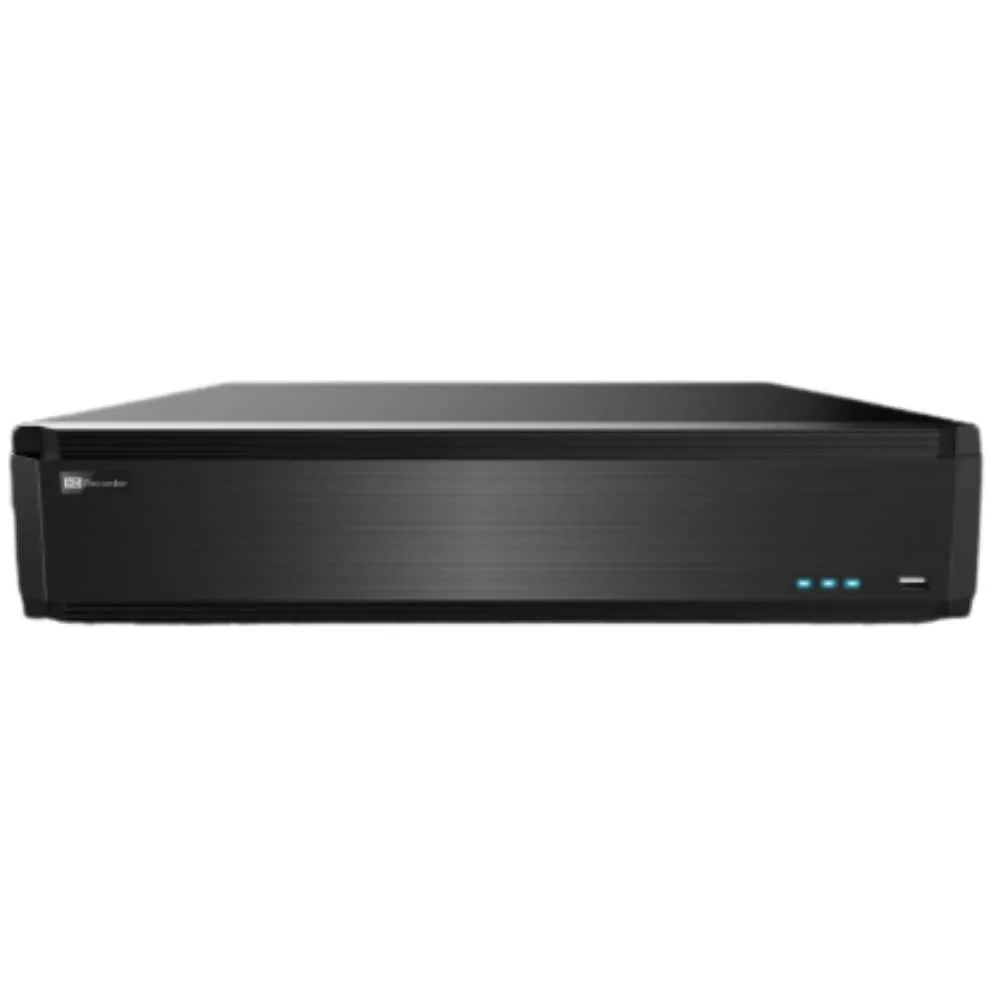

– 32CH 8MP 4K, XVR/DVR, ED8632H5-FN.

– 32 Channels Titanium Commercial Grade XVR (DVR + NVR), 32CH Hybrid Digital Video Recorder, HDMI, 8 Megapixel, 4K, Support IP Cameras, Max 32 BNC, 2x Port of RJ 45 1000Mbps, 2x HDMI Output, NDAA Compliant, 3 Years Warranty.





Product over view:

• ED8632H5-FN is a 32 Channels 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1 high definition DVR with ability to connect analog and IP cameras simultaneously, There for adopts the standard H.265 high profile compression format and the advanced SOC technique to ensure real time recording in each channel and realize outstanding robustness of the system.
• ED8632H5-FN supports 32CH video input, 16CH audio input, and simultaneous 16CH playback.
• The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.





32CH 8MP 4K 8 SATA Hybrid DVR Titanium With 2x RG45 1000mbs and 2x HDMI Output, ED8632H5-FN Features:

• 32 CH TVI / AHD/CVI 8MP/5MP/ 4MP/ 3MP / 1080P / 720P / WD1 video input
• 32 CH DVRs support 8 CH 8MP/5MP / 4MP / 3MP / 1080P / 960P / 720P IP video input
• 8CH analog video input can be switched to 8CH IP video input
• Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
• Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
• Multi-type recording: manual / timed / sensor / motion /AI recording
• Playback : 16 CH simultaneously playback
• Search: time slice, time, event, tag and smart search
• Express and flexible backup via USB, network and so on
• Supports local preview, record, playback and backup

• DHCP, DDNS, PPPoE network protocol

• Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
• Multi-user online simultaneously
• Authorization management, log review and device status review
• 4K output, true high resolution display
• Supports PTZ preset and auto cruise, up to 255 presets and 8 cruises
• Supports RAID 0, 1, 5, 6, 10
• Supports NAT function and QRCode scanning by mobile phones
• Powerful mobile surveillance by smart phones with iOS and Andriod OS





General:

– Max Recording Resolution: 8MP
– Channels: 32CH
– LAN Ports: 2
– SATA: 8X SATA PORTS
– Video Outputs: HDMI / VGA, HDMI 2
– Compliance: NDAA
– Hardware Features: Alarm in, Alarm out, Audio in, Audio out, BNC Video Out, Raid





Downloads:

– Click Here to Download the Product Specification Sheet.
